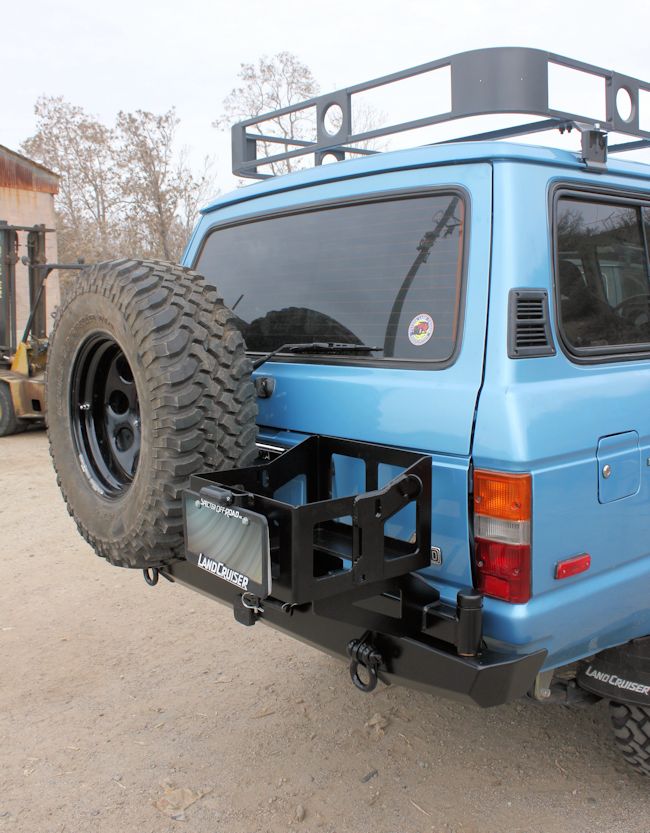

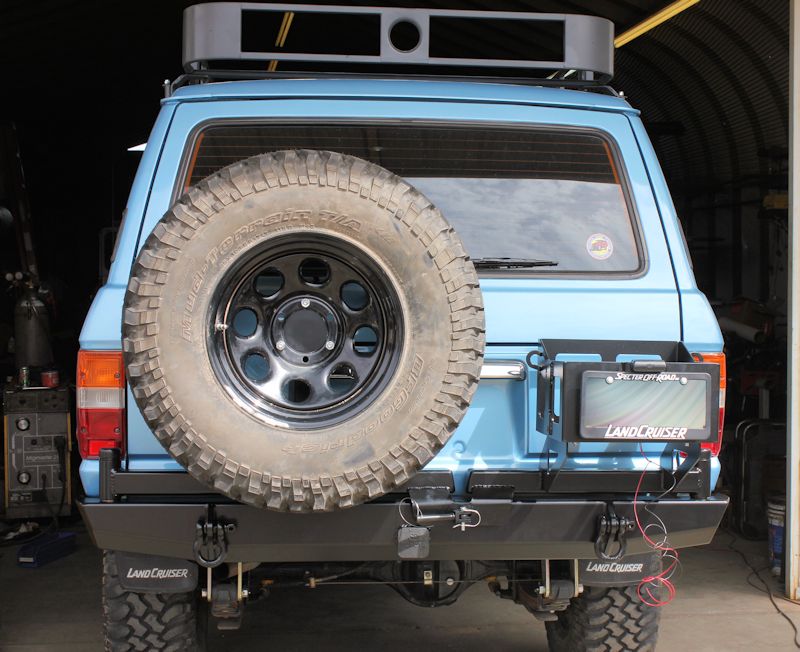

FJ60 Land Cruiser Classic Rear Bumper
Bumper section is built from precision cut, formed 3/16" plate steel.

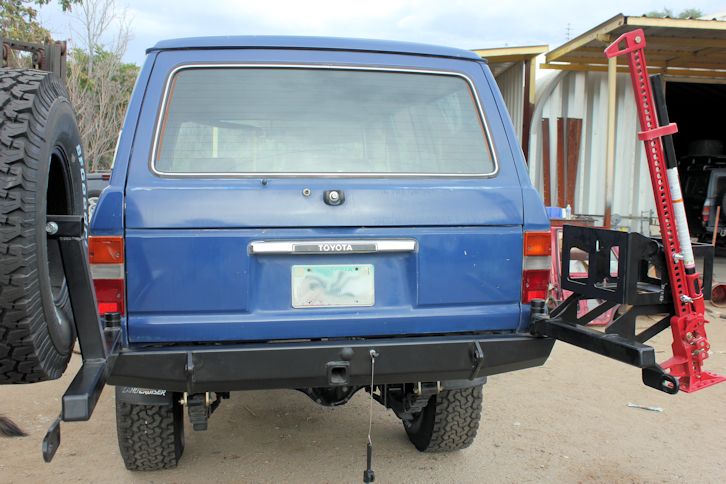

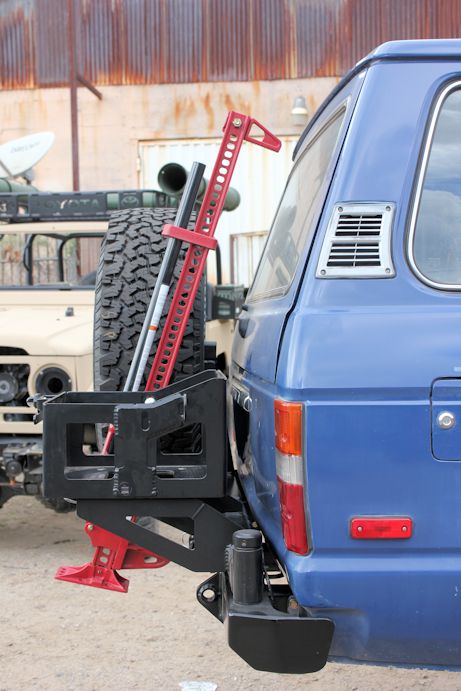

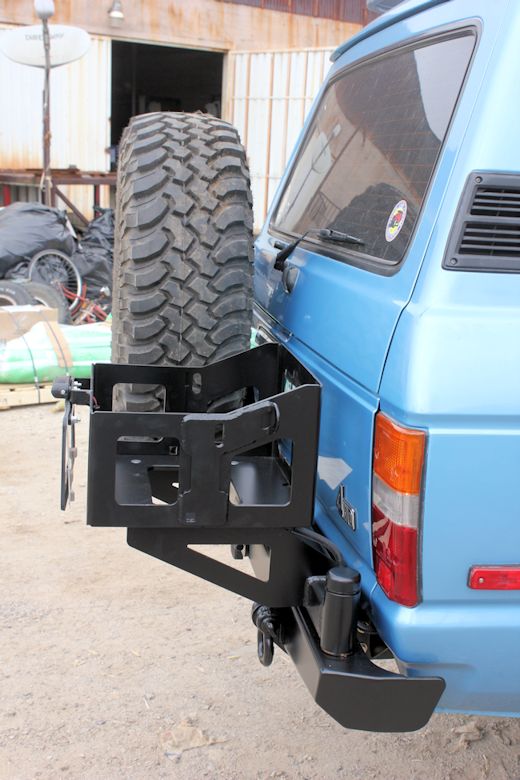

Tire carrier and jerry can basket swing-outs are made with 2"x.250" wall square tubing.
Although strength and durability were our chief concerns, much attention was given to appearance and utility.
Holding the channel tight to the body and chamfering the bottom at 45 degrees, departure angle is maximized without sacrificing structural integrity.

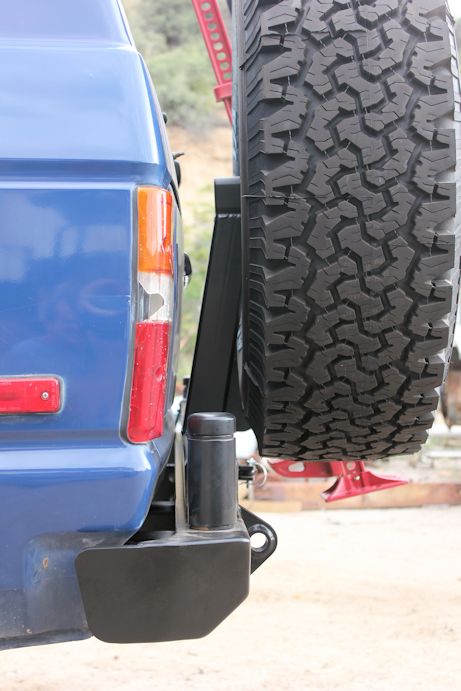

The outer "wings" are boxed for reinforcement making them very rigid. This carrier does not rattle or flex while driving rough roads.
D-ring/shackle mounts are 1/2" thick plate steel.
Features a built-in tow/hitch receiver with chain loops that connects to a 2-1/2"x.188" wall square tube cross bar.

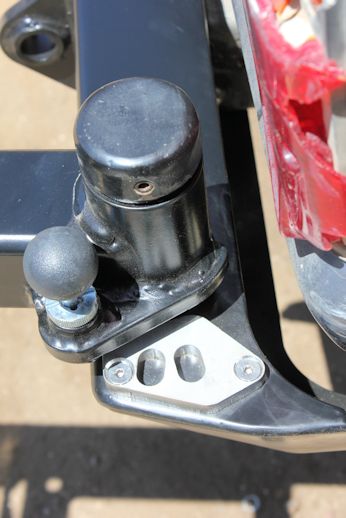

Now featuring stainless steel lockouts for when you would like to keep the tire carrier arms open.
Our lockouts have two positions to choose from, will not chip or rust, and are included with any 60 series Classic Rear Bumper option.

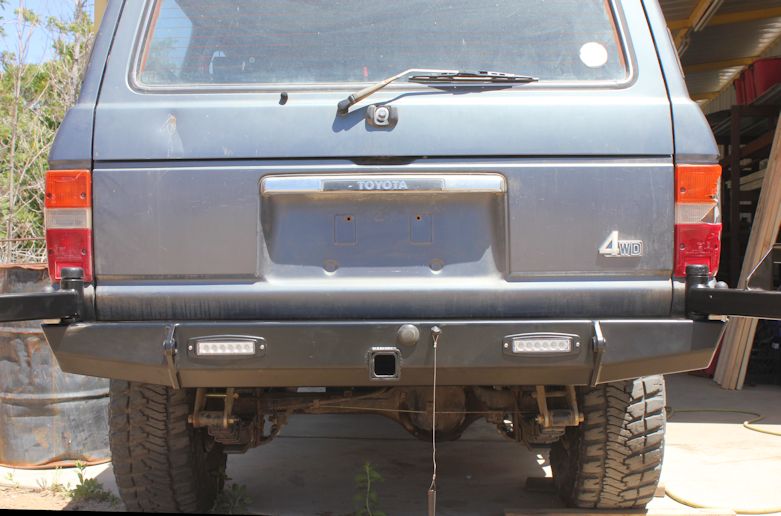

We also now offer the option of integrated rear reverse lights to our 60 series rear bumpers.
These lights are two very bright 18 watt flush mount LEDs.
Although they can be wired into the reverse light circuit, because of their brightness, I prefer switching them independently.

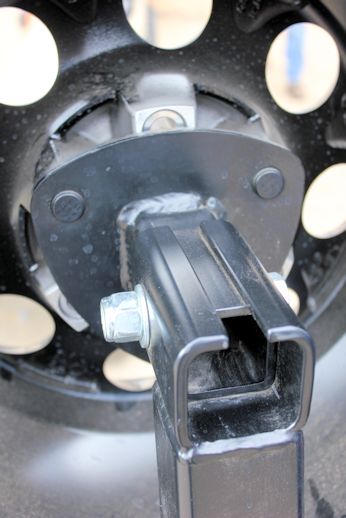

3/8" tire mounting plate will easily handle a fully inflated 37" tire and is adjustable for wheel width.
Closes with a Carr Lane Double Cam Clamp.
Hardware is included
Powder coated satin black (Optional)
To install, you must remove your frame's factory rear cross member, the eight rivets in your rear body mounts, as well as the stock rear bumper mounts(six rivets).
The bumper then slides and bolts into the frame rails and provides even more support than before with our built-in cross bar.
