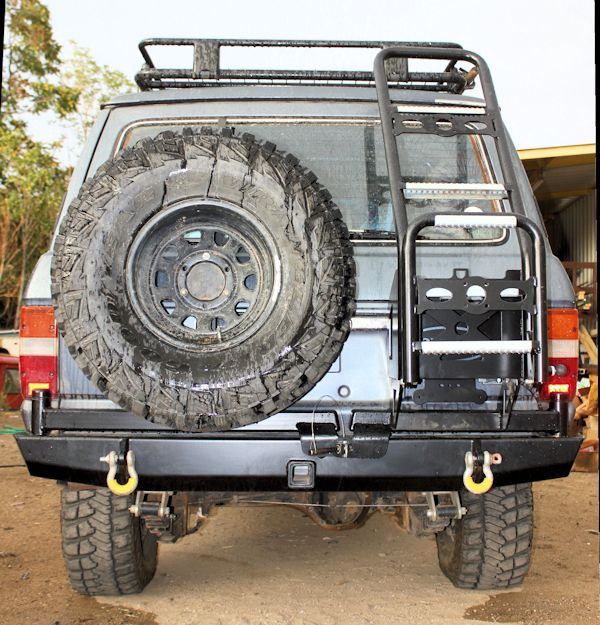

FJ60 Land Cruiser Expedition Rear Bumper

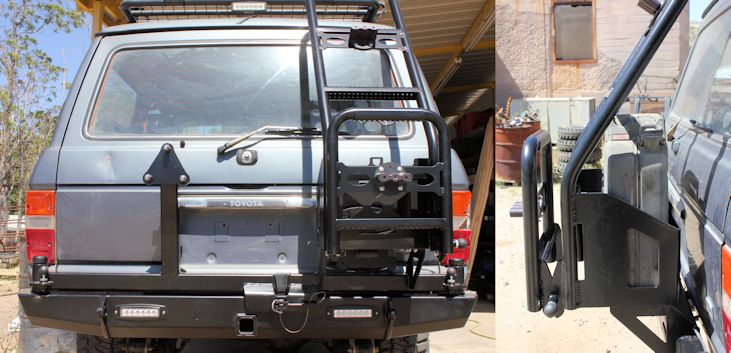

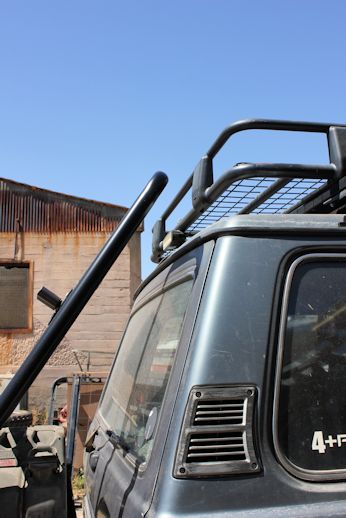

Our 60 series Expedition Rear Bumper is similar to our Classic Rear Bumper but features a fold out ladder for easy roof rack access and RotopaX support.

No part of this rear bumper/tire carrier touches your Land Cruiser's body.

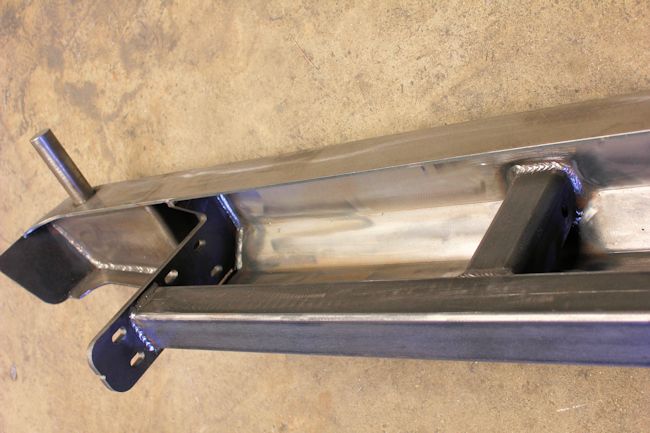

Bumper section is built from precision cut, formed 3/16" plate steel.

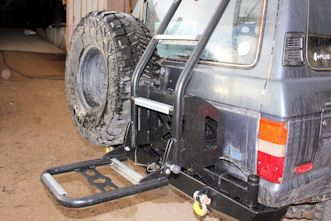

Tire carrier and jerry can basket/ladder swing-outs are made with 2"x.250" wall square tubing.

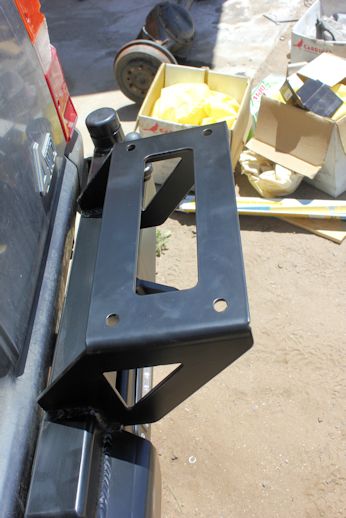

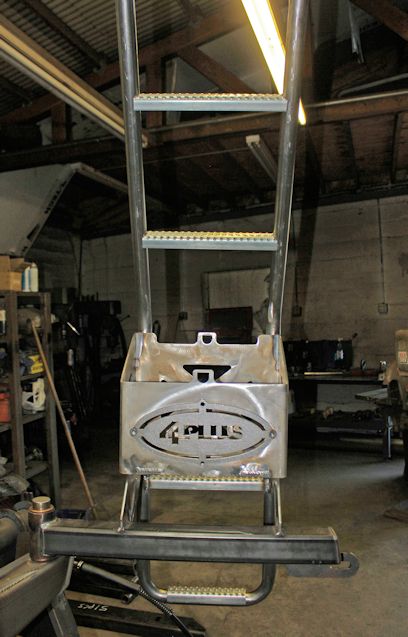

The basket features Hi-lift jack provisions, holes to mount license plate and license plate light, and can hold one jerry can.

Features a built-in tow/hitch receiver with chain loops that connects to a 2-1/2"x.188" wall square tube cross bar.

Jerry can basket and basket mount are constructed of 3/16" plate steel.

Pivots are precision ground & polished shafting and .250" wall DOM tubing with replaceable bronze bushings.

3/8" tire mounting plate will easily handle a fully inflated 37" tire and is adjustable for wheel width.

D-ring/shackle mounts are 1/2" thick plate steel.

** NEW **

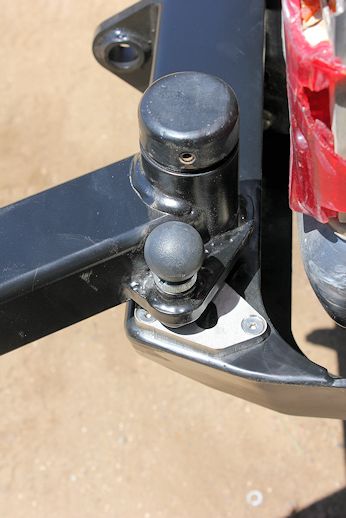

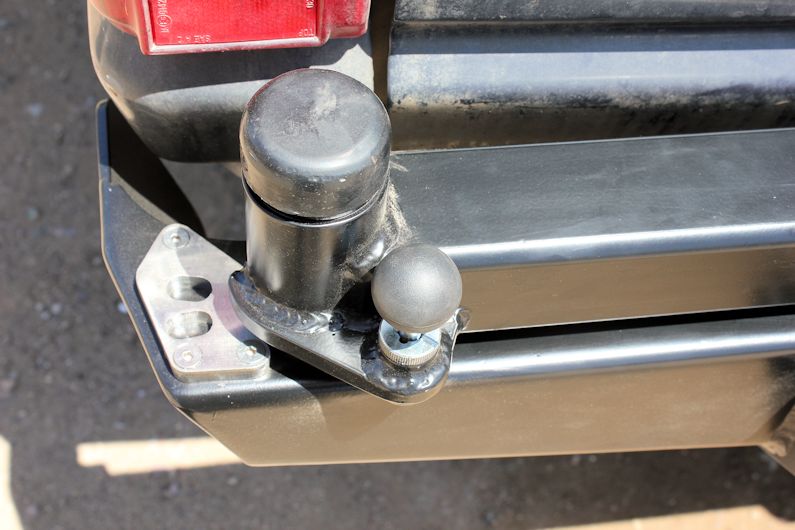

Now featuring stainless steel lockouts for when you would like to keep the tire carrier arms open.

Our lockouts have two positions to choose from, will not chip or rust, and are included with any 60 series Expedition Rear Bumper option.

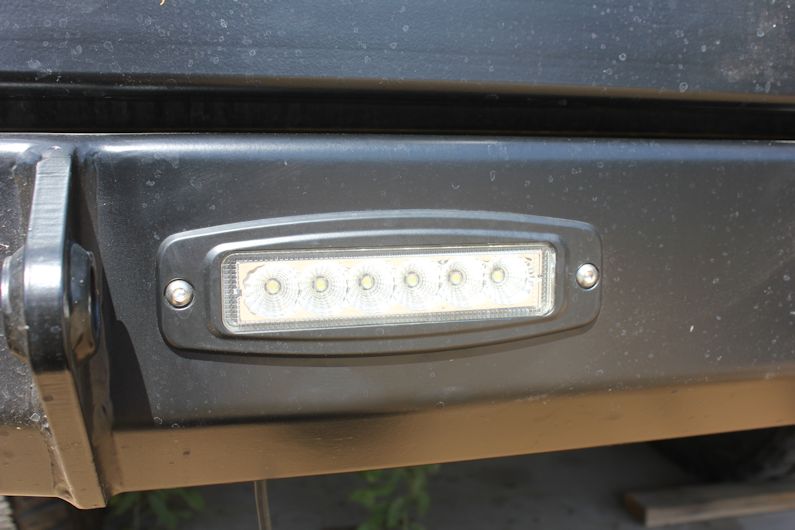

We also now offer the option of integrated rear reverse lights to our 60 series rear bumpers.

These lights are two very bright 18 watt flush mount LEDs.

Although they can be wired into the reverse light circuit, because of their brightness, I prefer switching them independently.

These will be welcome on the trail or as a work light for trail repairs.

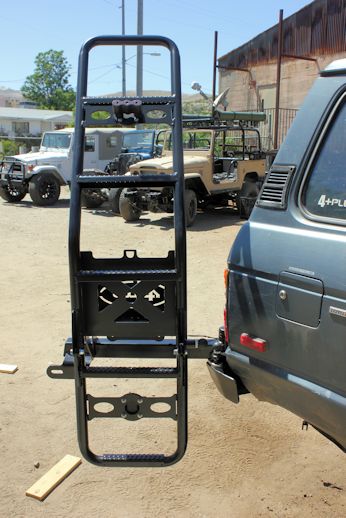

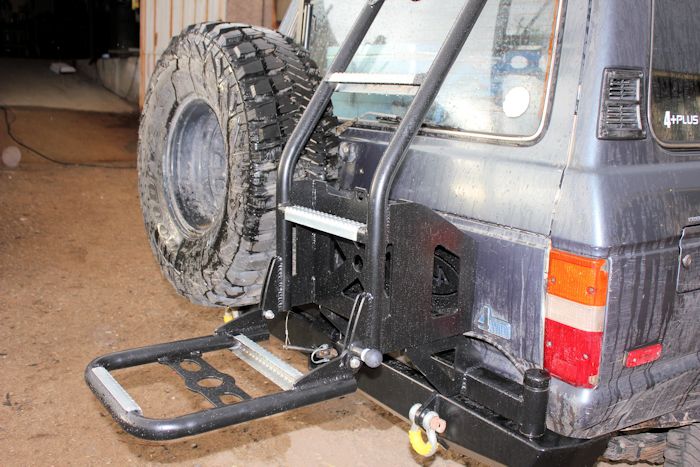

The ladder can fold all the way down as well as be locked at 90 degrees(great for a small stand/table out in the field.)

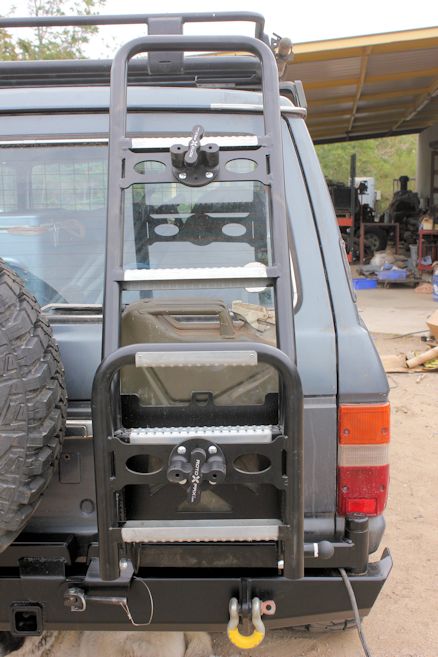

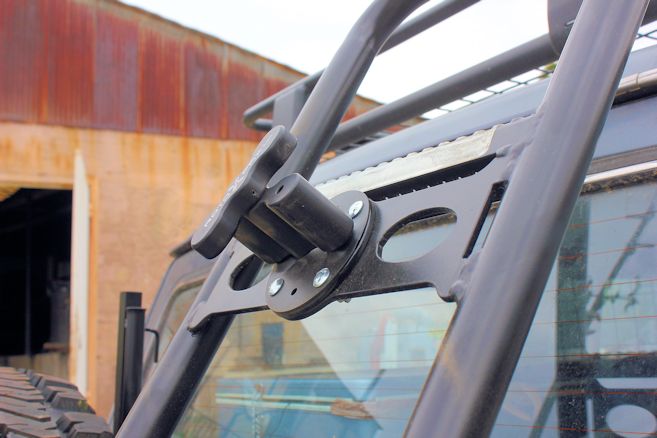

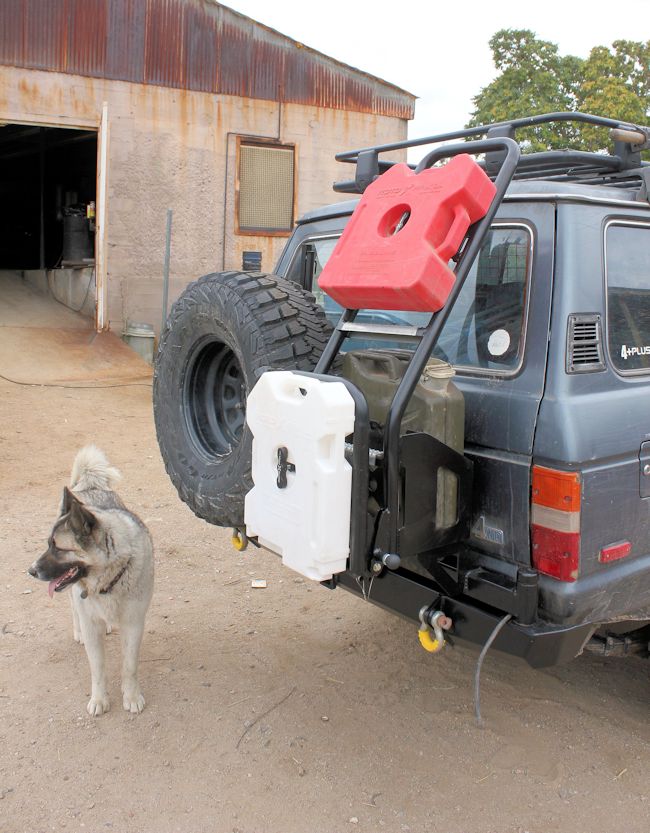

Features two RotopaX provision points. One on the lower end of the ladder, and one near the top.

Visit for RotopaX mounting hardware and fuel cans.

Shackle mounting points are reinforced with 1-3/8"x.188" wall sleeves.

Closes with a Carr Lane Double Cam Clamp.

Hardware is included.

Powder coated satin black.

To install, you must remove your frame's factory rear cross member, the eight rivets in your rear body mounts, as well as the stock rear bumper mounts(six rivets).

The bumper then slides and bolts into the frame rails and provides even more support than before with our built-in cross bar.

Note to our customers

During Covid closures steel prices rose 250 to 300%. Lumber for pallets is still double what it was. Everyone is aware of what energy has done in the last year, reflecting on transportation costs. This has forced our prices up more in the last year compared to the previous ten. Rather than just discontinuing many products we will still offer them at the margin we need to carry on.

I hope there will be a reversal in prices in the future but suppliers aren't optimistic.

Thanks for your support in advance.

FJ60 Expedition Rear Bumper Product #: 60-ERBTC
Base Price: $2,750 (Comes Bare Metal)


Special Order Options:

Save $75 by picking this product up at our shop.
